List of components
A0 - Backplate x1
A1 - Hub Ring x1
B0 - iotspot Hub x1
C0 - Hub Ring screws x2
C1 - Solution screw block x2
C2 - Solution hanging cables x2
Setup steps
- Place the Hub Ring (A1) into the Backplate (A0). Make sure the screw holes are horizontally aligned. The components should click firmly into place.
- Place iotspot Hub (B0) into the Hub Ring (A1). Make sure the screw holes are aligned with the screw holes of the Hub Ring (A1).
The iotspot Hub should fit fully into the Hub Ring slot.
- Screw the Hub Ring screws (C0) into the Hub Ring screw holes.
- Loosen the small screws on the side of the Solution screw block (C1).

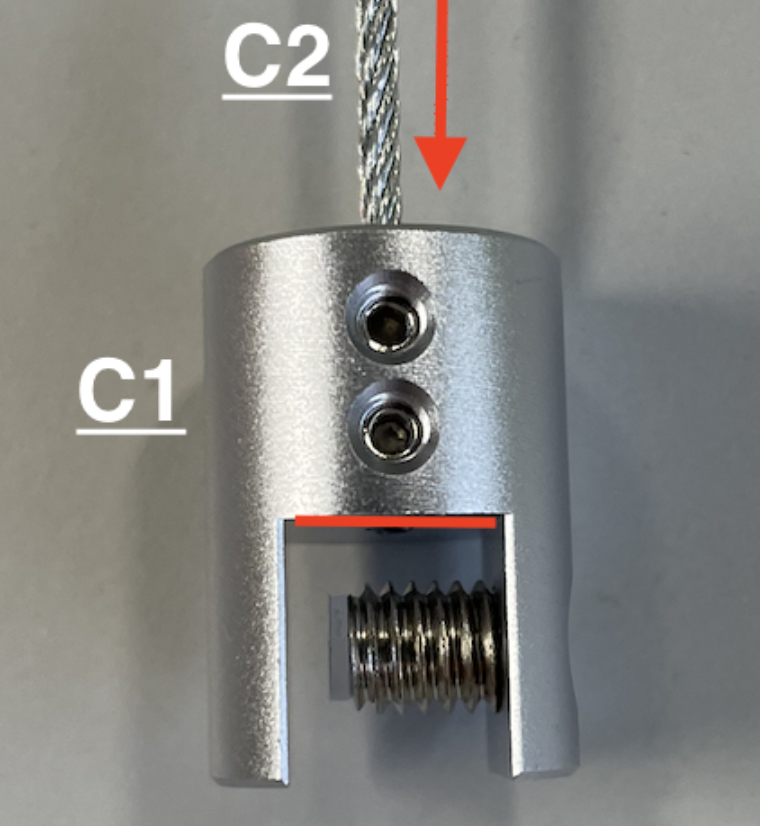

- Insert a Solution hanging cable (C2) into the Solution screw block (C1). The end of the cable should align with the hole on the other side without sticking out.
- Tighten the small screws on the side of the Solution screw block (C1), securing the hanging cable in place.
- Loosen the big screw on the bottom of the Solution screw block (C1).
- Place the Solution screw block (C1) over the edge of the Backplate (A0), approximately 5 mm off the side.
- Tighten the big screw on the bottom of the Solution screw block (C1) securing the Solution screw block (C1) to the Backplate (A0).
- Repeat steps 3-8 for the other side of the Backplate (A0)
The setup of the iotspot Hub Room Solution is now complete! Hang the iotspot Hub Room Solution according to the product sheet and your environment specifications.
