Map setup using iotspot Setup App

You can use the iotspot Setup app to place Workspaces onto the Indoors Map, adjust the position of existing Workspaces or remove them from the map entirely.

Adding a Workspace to the map

Note: You will need a MapsIndoors CMS account with access to your location's map to be able to use this feature. If you don't have a MapsIndoors CMS account, please contact your iotspot office administrator to request one.

1. Select the "Map" tool in the iotspot Setup app

2. Log into your MapsIndoors CMS account
3. Select the location that you wish to configure
   Note: If you have nothing to select, then you either do not have access to any location maps or you are in the wrong Organization profile. You can change your organization profile in the Settings back on the home screen.
4. Scan (or manually enter the Device ID of) the iotspot that you wish to add to the map

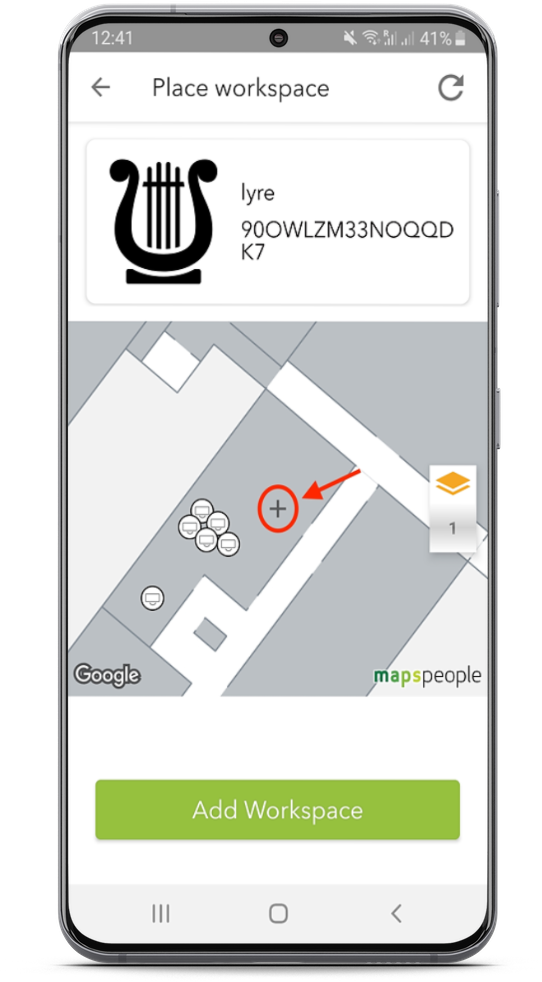

5. Position the marker to the exact location that you wish to place the Workspace at

6. Tap the "Add Workspace" button and confirm your action

Updating Workspace location on the map

If you wish to position a Workspace more precisely, you can do so by using the Map tool in the Setup app in the same way as you would if you were adding a new Workspace to the map.

Removing a Workspace from the map

To remove an existing Workspace from the map, select the Workspace that you wish to remove and click on the name popup. You will be asked to confirm your action.

Note: you do not need to scan / load a device to remove it.
